Product ID 22-904
Yamaha Stator Rebuild Kit 22_904 #1Yamaha Stator Rebuild Kit 22_904 #2

Yamaha Stator Rebuild Kit 22_904

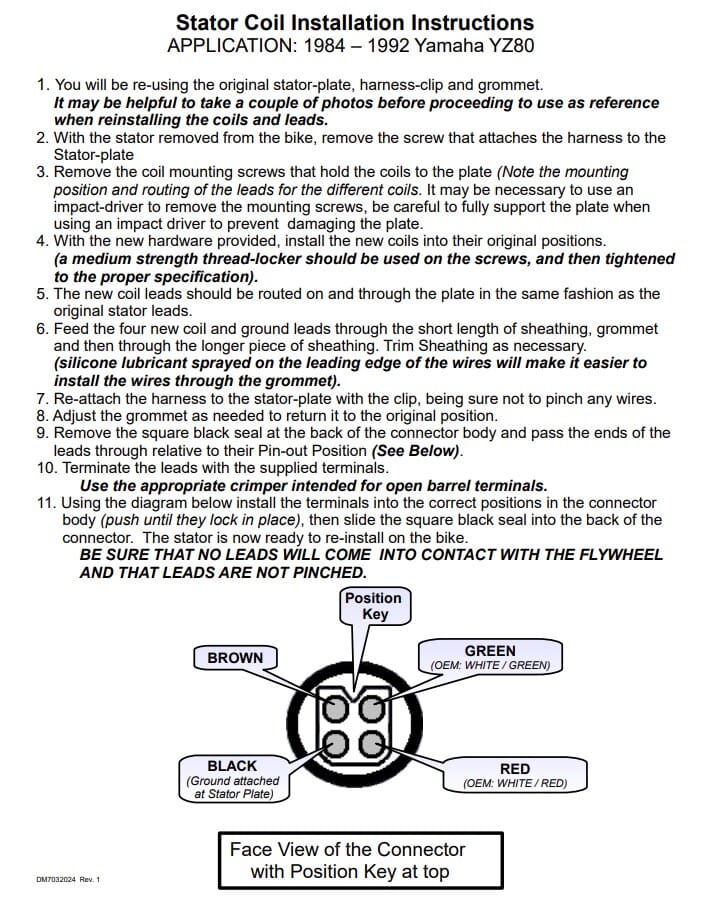

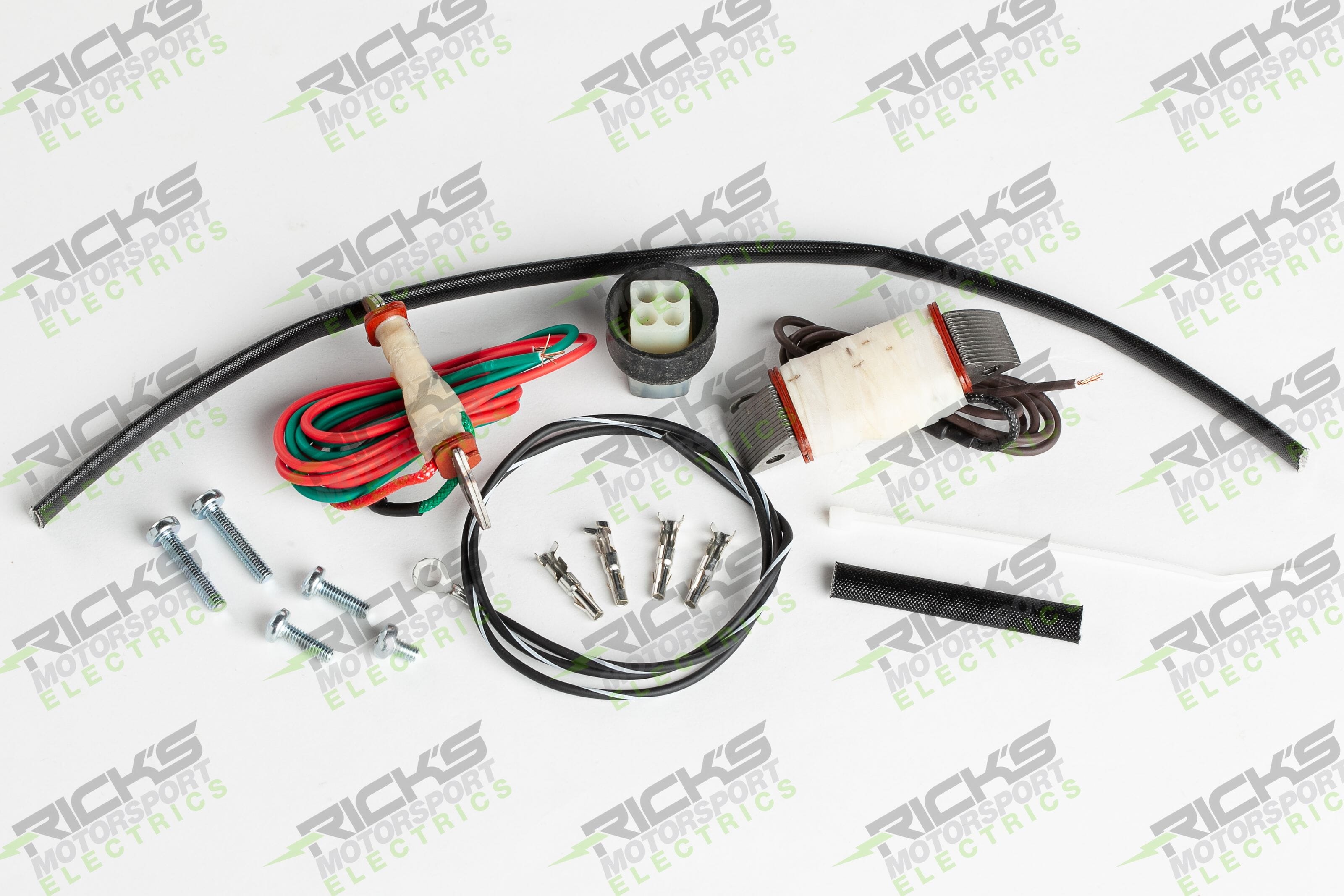

Yamaha Stator Rebuild Kit: This rebuild kit includes the 2 banana shaped coils (pick-up/pulsar coil & source coil), lead wires attached with connector & terminals, sheathing, screws, & instructions for installation. *It does NOT include the stator plate, grommet or harness clip.
Price: $72.95
LAST VEHICLE SEARCH

This part fits the following vehicles:

  • Yamaha Stator Rebuild Kit 22_904 for a 1984  Yamaha Dirt Bike  YZ80
  • Yamaha Stator Rebuild Kit 22_904 for a 1985  Yamaha Dirt Bike  YZ80
  • Yamaha Stator Rebuild Kit 22_904 for a 1986  Yamaha Dirt Bike  YZ80
  • Yamaha Stator Rebuild Kit 22_904 for a 1987  Yamaha Dirt Bike  YZ80
  • Yamaha Stator Rebuild Kit 22_904 for a 1988  Yamaha Dirt Bike  YZ80
  • Yamaha Stator Rebuild Kit 22_904 for a 1989  Yamaha Dirt Bike  YZ80
  • Yamaha Stator Rebuild Kit 22_904 for a 1990  Yamaha Dirt Bike  YZ80
  • Yamaha Stator Rebuild Kit 22_904 for a 1991  Yamaha Dirt Bike  YZ80
  • Yamaha Stator Rebuild Kit 22_904 for a 1992  Yamaha Dirt Bike  YZ80
    • .
