Choosing the correct rectifier regulator for your Suzuki

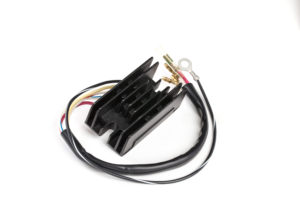

From 1977-1986, Suzuki used a mix of three different rectifier/regulator models for their street bikes, primarily the GS-models. Although the rectifier/regulators themselves were essentially the same across all models, they featured three different lead-off styles. Rick’s Motorsport Electrics carries direct plug-in replacements for all three. Please use this guide to determine which rectifier/regulator will properly fit your motorcycle:
If your OE rectifier/regulator …you need part number:
is terminated with… 10-202

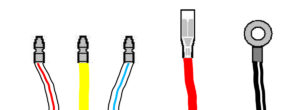

Three AC input wires with male bullet
terminals, a DC positive with a female bullet
terminal, and a 6mm eyelet on the ground wire
Three AC input wires and the DC positive
going to a 4-position female connector and
the ground ending in a female bullet terminal
Five male spade terminals embedded on 10-222
the rectifier/regulator itself with no lead wires
On the 10-202 and 10-212, the white/red, white/blue, and yellow wires are the AC inputs, red is DC positive, and black/white is DC negative (ground). For the 10-222, use the pin-out provided on the chart.
If you have any further questions please visit our website at ricksmotorsportelectrics.com or call us at 1-800-521-0277.
